Steps I take after a fresh installation of a raspberry pi

14 September 2021

My raspberry pi fresh installation

SSH

There are two options to do this. You can find the first way on the respective wiki page. We will handle the second way when we come to it.

Static IP Configuration

Always create a backup of your current network settings. Then, if something were to go wrong, at least you can go back to the previous settings.

Setting a static IP address

The IP configuration of the network adapters is saved in the configuration file dhcpcd.conf in the /etc folder. Open the file with the nano editor:

At the bottom of the file, add the following lines:

  • Interface: use eth0 for the ethernet adapter and wlon0 for the wireless WIFI adapter.
  • static ip_address: Fill in the IP address you would like, followed by a `/` en the subnet mask of your network. If you use 255.255.255.0, then you fill in `/24`. If you have a broader subnet mask like 255.255.0.0, you can use /16.
  • static routers: Fill in the router's IP address (default gateway).
  • static domain_name_servers: Here, you can fill in which DNS servers you want to use.

Once you have changed the file, save the adjustments with Ctrl + X, y, enter`.The changes will not be visible immediately. So you're probably better of restarting your raspberry pi at this point.

After the restart, you can find the raspberry pi on the IP address you have configured.

Enable SSH using the GUI

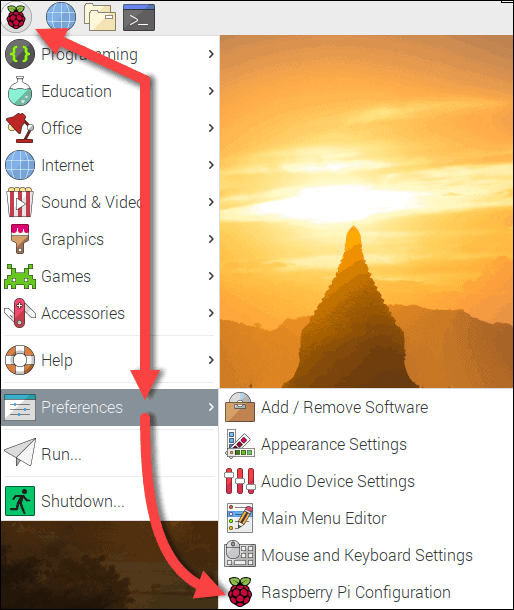

  • Click the raspberry logo at the top-left corner.
  • Select Preferences > Raspberry Pi Configuration.

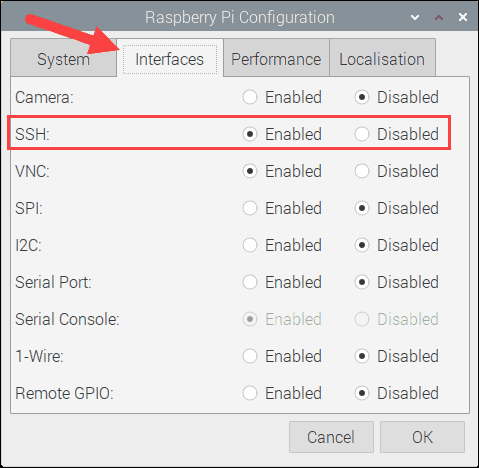

  • Navigate to the Interfaces tab in the configuration window.
  • Enable SSH in the second line.

  • Click ok to save the changes.

That's it. Your Raspberry Pi is now accessible via SSH. Ensure the device is connected to the internet before establishing an SSH session.

sudo cp /etc/dhcpcd.conf /etc/dhcpcd.conf.backup
sudo nano /etc/dhcpcd.conf
interface eth0
 static ip_address=192.168.1.30/24
 static routers=192.168.0.1
 static domain_name_servers=9.9.9.9
sudo reboot -h 0
